GJYXCH Self Supporting Drop Cable PVC LSZH Fiber Optic Cable

Brand Name : Dierite

Model Number : GJYXCH

Certification : ISO9001 CE ROHS

Place of Origin : China

MOQ : 1000M

Delivery Time : 7-15 DAYS

Packaging Details : 1000M/Wood Roll

Cable Diameter : 1.6-φ1.6mm 2.0-φ1.95mm 3.0-φ2.85mm

Fiber Type : B1.3=G652D B6A1=G657A1 B6A2=G657A2 OM1=62.5/125 OM2=50/125 OM3= Maxband*150 OM3=Maxband*300 OM4= Maxband*550 OM5= Maxband*550

Jacket color : Yellow Orange Aqua customized

Jacket material : PVC LSZH

Contact Now

GJYXCH Self-Supporting Drop Cable Fiber Optic Cable

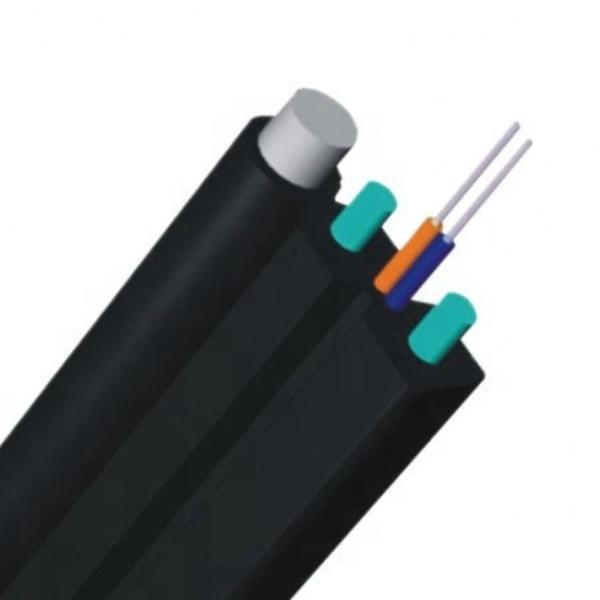

The optical fiber unit is positioned in the center. Two parallel Fiber Reinforced(FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color LSZH sheath.

Product feature

▶ Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
▶ Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
▶ Single steel wire as the additional strength member ensure good performance of tensile strength.
▶ Simple structure, light weight and high practicability.
▶ Novel flute design. easily strip and splice, simplify the installation and maintenance.
▶ Low smoke, zero halogen and flame retardant sheath.

No. of fibers count 1-2
Strength member Diameter 0.45 mm
Material Steel wire
Outer jacket Diameter 5.0(±0.1)*2.0(±0.1) mm
Material LSZH
Color Black
Tensile performance Short term 200 N
Long term 100 N
Crush Short term 2200 N/100mm
Long term 1100 N/100mm
Cable attenuation ≦ 0.4dB/km at 1310nm, ≦ 0.3 dB/km at 1550nm
Cable weight (Approx.) 10.0 kg/km

Cable type Caple diameter
(mm)		 Optical cable reference weight
(kg/km)

Fiber buffer fiber diameter

(mm)

Tensile Strength

Long/short term
(N)

Crush resistance

Long/short term
(N/100mm)

Bending Radius

Dynamic/static
(mm)
ZCC-1.6 1.65*2±0.05 5.2 0.6±0.05 40/80 100/500 60/30
ZCC-2.0 1.95*2±0.05 7.0 0.9±0.05 100/200 100/500 60/30
ZCC-3.0 2.85*2±0.05 13.0 0.9±0.05 100/200 100/500 60/30

Fiber type Attenuation

Full injection

bandwidth

 Effective mode bandwidth 10G Ethernet link length

Minimum bend

radius
Condition 1310/1550nm 850/1300nm 850/1300nm 850nm 850nm /
Normal Max Normal Max
Unit dB/km dB/km dB/km dB/km MHZ.km MHZ.km m mm
G652D 0.36/0.22 0.5/0.4 --- --- --- --- --- 16
G657A1 0.36/0.22 0.5/0.4 --- --- --- --- --- 10
G657A2 0.36/0.22 0.5/0.4 --- --- --- --- --- 7.5
50/125 --- --- 3.0/1.0 3.5/1.5 ≥500/500 --- --- 30
62.5/125 --- --- 3.0/1.0 3.5/1.5 ≥200/500 --- --- 30
OM3 --- --- 3.0/1.0 3.5/1.5 ≥1500/500 ≥2000 ≤300 30
OM4 --- --- 3.0/1.0 3.5/1.5 ≥3500/500 ≥4700 ≤550 30

GJYXCH Self Supporting Drop Cable PVC LSZH Fiber Optic Cable

Note:

Delivery length can be customized according to the customer's requirements. Marking &Package is factory standard or per customer's request.
